[Polishing Cloth]

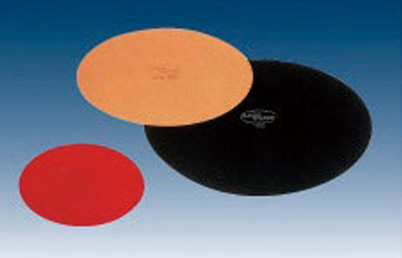

Polishing Cloth
Polishing Cloth is used together with derivative products of Diamond Powder
and applied to mirror-like finishing of various products.
※ You can check the contents by scrolling left / right.
| Polishing cloth is used in conjunction with the diamond powder derivatives, and it is suitable for mirror finish machining of various products. In polishing work, abrasive particle support is as important as the abrasive particles. Choice and composition of this support are decided depending on the material and use of the workpiece to be machined. For ultra-precision polishing, it is advantageous to use the polishing cloth provided by our headquarters together with the synthetic surface plate. |
Diamond Powder Type
| The lam plan polishing cloth provided by our headquarters has classified the textile tissue into 3 types depending on the processing condition. | |||
| Compressed(①) |  |
 |
|
| flocked(②) |  |
 |
|
| woven(③) |  |
 |
|
Plate Type & Purpose
| Kind | CODE No. | 9450 | 410 | 415 | 437 | 431 | 432 | 434 | 435 | Mechano Cloth | Peron PSU |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 530 | 540 | ||||||||||||
| Rayon(Artificial Fiber) | ● | ● | ● | For Pre-polishing |
For Finishing |
Synthetic fiber, STD, with special air bubbles, is used for rough grinding and the PSU is suitable for long time use. | |||||||
| Cotton | ● | ● | ● | ||||||||||
| Compressed Wool | ● | ● | For chemical LAP | ||||||||||
| Synthetic Fiber Supporter |
● | ● | |||||||||||
|
Diamond Particle Diameter |
Range of use of the HYPREZ Diamond Slurry |
1/10μ | ● | ||||||||||
| 1/4 | ● | ● | ● | ||||||||||
| 1/2 | ● | ● | |||||||||||
| 1 | ● | ● | ● | ● | ● | ● | |||||||
| 3 | ● | ● | ● | ● | ● | ||||||||
| 6 | ● | ● | ● | ● | ● | ||||||||
| 9 | ● | ||||||||||||
| 15 | ● |
|
|||||||||||
|
Abrasive Material |
Finishing for Alumina Sulfur |
● | |||||||||||
| Precision-finishing of Alumina |
● | ● | ● | ● | |||||||||
| Cerium oxide | ● | ● | |||||||||||
| Combined Paste / Lubricant | Water-based Aqueous Oil |
Water-based | Water-based Aqueous Oil |
Water-based | |||||||||
| Size | 105/200/230/380/610/910 (Others are special orders) | ||||||||||||
