[Cast Iron Lapping Plate]

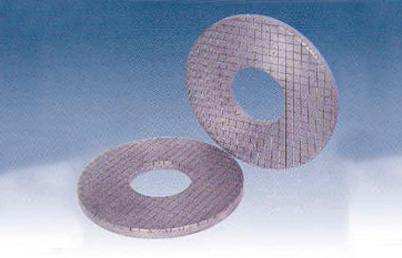

Cast Iron Surface Plate
Mainly used for double-side lapping machine and used for rough grinding of various materials.
There are specifications such as 6BL, 9BL, 12BL, and 18BL, other specifications can be customized.
There are specifications such as 6BL, 9BL, 12BL, and 18BL, other specifications can be customized.
※ You can check the contents by scrolling left / right.
Plate Type & Purpose
| Plate Type | Purpose | Contenty | Abrasives |
|---|---|---|---|
| Iron Plate | Course Lapping | It is an iron polymer suitable for lapping of ceramics, Tungsten Carbide and etc. | Diamond Powder 9μ, 15μ, 30μ |
| Cu Plate | Middle Lapping | It is a copper polymer suitable for lapping of ceramics, ferrite nickel silver, sapphire and crystal. | Diamond Powder 3μ, 6μ, 9μ |
| Tin Plate | Fine Polishing | It is a tin polymer suitable for lapping of alumina, zirconia with electromagnetic functions. | Diamond Powder 1/4μ, 1/2μ, 1μ, 2μ, 3μ |
| Ceramic Plate | For Composite | Ceramic- ferrite complex plate. Base plate suitable for hard materials such as cemented carbide, single crystal ferrite | Diamond Powder 1μ, 2μ, 3μ |
| Cast Iron Plate | Course Lapping | Suitable for all types of workpiece rough machining. | GC, C, WA, A |
| Diamond Pellet Plate | Course & Middle Lapping | Excellent cut-ability for difficult materials such as iron, nonferrous, ceramics and carbide. | None |
| PVA & FBB Plate | Course & Middle Lapping | Suitable for processing soft material of iron and nonferrous products. | None |
Plate Size : 8", 10", 12", 15", 18", 24", 36", 48", 52", 64"
t : 1/4", 1/2", 1"
t : 1/4", 1/2", 1"
