[Super Porous Grinding Wheel]

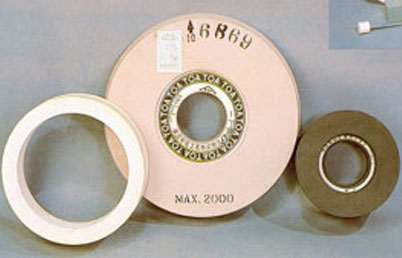

Super Porous Grinding Wheel
※ You can check the contents by scrolling left / right.
| Feature | - It has its own elasticity due to the pores contained in it. - Porosity gives excellent self-dressing effect and absorbs friction heat. - Frictional heat occurring at the time of grinding is emitted due to porosity. |
||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Spec- ification |
Abrasive | A(Brown smelting Alumina), TA(sintering Alumina), WA(White smeliting Alumina), RPA(Rose Alumina), SA(Black Alumina), C(Black Carbonization Silicon), GC(Green Carbonization Silicon) | |||||||||||||||||||||||||||||||
| Grit(#) |
8, 10,12,14, 16, 20, 24, 30, 36, 46, 54, 60, 70, 80, 90, 100, 120, 150, 180, 220, 240, 280, 320, 360, 400, 500, 600, 700, 800, 1000, 1200, 1500, 2000, 2500, 3000 |
||||||||||||||||||||||||||||||||
| Bond | V(Vitrified), S(Soda feldspar), R(Rubber), B(Synthetic Resin), E(nature Resin), M(Metal), special Bond, Mg(Magnesia) | ||||||||||||||||||||||||||||||||
| Hardness | Extreme Sone(E,F,G), Soft(H,I,J,K), Medium(L,M,N,O), Hard(P,Q,R,S), Extreme Hard(T,U,V,W,X,Y,Z) | ||||||||||||||||||||||||||||||||
| Pore Construction |
|
||||||||||||||||||||||||||||||||
| Example of Application |
- Grinding of a Rubber(Urethane, Silicon, etc. ) roller, copying machine roller, etc. - Grinding & superfinishing of the edge, aluminum, ceramic, rubber, wood, stone. - The dressing & truing of a diamond & CBN grinding wheel - Control wheel of the centerless grinder. grinding of the alloy (tool steel, stainless, hard metal, etc.) |
||||||||||||||||||||||||||||||||
