Diamond Compound

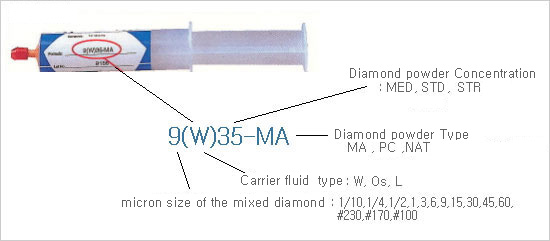

Diamond Paste in syringe type is usually applied to polishing various shapes of mold.
it is a Diamond abrasive material used when processing Hard Steels like Die, Mold, Tungsten tool, Mechanical, Seal at high MMR, etc..
You can gain a better processing effect when it is used with a suitable lubricant.
it is a Diamond abrasive material used when processing Hard Steels like Die, Mold, Tungsten tool, Mechanical, Seal at high MMR, etc..
You can gain a better processing effect when it is used with a suitable lubricant.
※ You can check the contents by scrolling left / right.
Size Type and Mesh Size Comparison Table
| W | OS | L | Five Star | Range | Mesh Size |
|---|---|---|---|---|---|
| 1/10-W-475 | 1/10-OS-475 | 1/10L | 1/10-FS-475 | 0~1/5 | 240,000 |
| 1/4-W-475 | 1/4- OS -475 | 1/4L | 1/4- FS -475 | 0~1/2 | 100,000 |
| 1/2-W-475 | 1/2- OS -475 | 1/2L | 1/2- FS -475 | 0~1 | 60,000 |
| 1-W-47 | 1- OS -47 | 1-L | 1- FS -47 | 0~2 | 14,000 |
| 3-W-40 | 3- OS -40 | 3-L | 3- FS -40 | 1~3 | 11,000 |
| 6-W-375 | 6- OS -375 | 6-L | 6- FS -375 | 2~4 | 8,000 |
| 9-W-35 | 9- OS -35 | 9-L | 9- FS -35 | 8~12 | 1,800 |
| 15-W-35 | 15- OS -35 | 15-L | 15- FS -35 | 12~22 | 1,200 |
| 30-W-30 | 30- OS -30 | 30-L | 30- FS -30 | 22~36 | 600 |
| 45-W-30 | 45- OS -30 | 45-L | 45- FS -30 | 36~54 | 325 |
| 60-W-30 | 60- OS -30 | 60-L | 60- FS -30 | 54~80 | 270 |
| 230-W-30 | 230- OS -30 | 230-L | 230- FS -30 | Mesh | 230 |
| 170-W-30 | 170- OS -30 | 170-L | 170- FS -30 | Mesh | 170 |
| 100-W-30 | 100- OS -30 | 100-L | 100- FS -30 | Mesh | 100 |
Diamond Powder Type
| type | Feature | |
|---|---|---|
| W type |  |
▷liquid type Compound. ▷influenced by Oil Base lubricant. ▷fit precise Hand Lapping to need high gloss. ▷usually use this in Die, Mold industry. ▷fitness to W type when add a lubricant. |
| OS type |  |
▷oil type Compound. ▷fit Lapping work to need quick cutting. ▷fitness to OS type when add a lubricant. |
| L type |  |
▷high density. ▷fit pre-extruding carbide dise to need high gloss, Lapping of Heading dise, tungsten tool of many replacement, plane Lapping of mechanical seal. ▷supply lubricant to the moderate Lapping part fitting to Cutting Cycle. ▷Hyprelube is moderate when lubricant is added. |
| Five Star |  |
▷Compound nature diamond's a great cutting ability and artificial diamond's durability is combined.
▷multipurpose precision processing. ▷fitness to OS, W type when lubricant is added a lubricant. |
Plate Type & Purpose
| Particle Size | 1/10μ | 1/4μ | 1/2μ | 1μ | 2μ | 3μ | 6μ | 9μ | 15μ | 30μ | 45μ | 60μ | #230 | #170 | #100 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Micron Size | 0~1/5 | 0~1/2 | 0~1 | 0~2 | 1~3 | 2~4 | 4~8 | 6~12 | 10~12 | 22~36 | 36~54 | 54~80 | |||
| Mesh Size | 240,000 | 100,000 | 60,000 | 14,000 | 11,000 | 8,000 | 3,000 | 1,800 | 1,200 | 600 | 325 | 270 | 230 | 170 | 100 |
※ Beside the sizes listed above, a special-grande size is available.
