[Lubricant]

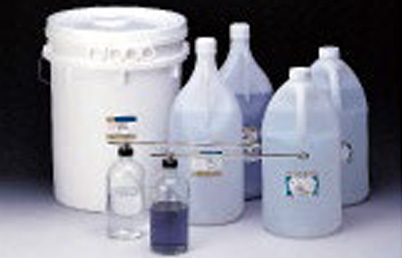

Lubricant
The lubricant used with the diamond slurry maintains the excellent cutting and uniform dispersion of the diamond; and it can effectively save the lapping time and the amount of diamond slurry.
OS (oil-based), W (water-based), S-4889 (waterbased), hyperlube type available.
OS (oil-based), W (water-based), S-4889 (waterbased), hyperlube type available.
※ You can check the contents by scrolling left / right.
| 특징 | |
|---|---|
| OS type(Aqueous Oil) | * Suitable for five-star, L type, and OS type compound and S1313 type slurry * Having features of low viscosity |
| W type(Water-based) | * Suitable for W type compound and S4889 type slurry * Suitable for finishing polish by forming an oil film slightly thicker than OS type |
| S4889 type(Water-based) | * A lubricant developed to be used with the S4889 type slurry * Easy cleaning after work * Excellent machinability due to very thin and stretched oil film |
| Hyprelube | * Positive type * Suitable for L type paste |
※There are specifications of 400cc, 1 gallon, and 1 mal (≒18 liters), other customized specifications are available. |
|
Plate Type & Purpose
| Particle Size | 1/10μ | 1/4μ | 1/2μ | 1μ | 2μ | 3μ | 6μ | 9μ | 15μ | 30μ | 45μ | 60μ | #230 | #170 | #100 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Micron Size | 0~1/5 | 0~1/2 | 0~1 | 0~2 | 1~3 | 2~4 | 4~8 | 6~12 | 10~12 | 22~36 | 36~54 | 54~80 | |||
| Mesh Size | 240,000 | 100,000 | 60,000 | 14,000 | 11,000 | 8,000 | 3,000 | 1,800 | 1,200 | 600 | 325 | 270 | 230 | 170 | 100 |
※ Beside the sizes listed above, a special-grande size is available.
