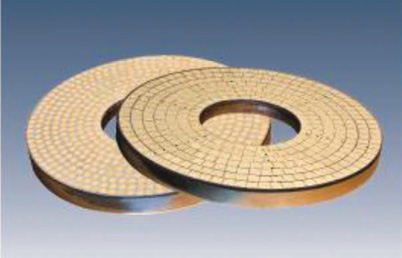

[Vitrified Diamond Pellet Plate]
Diamond Plate
Vitrified Bond Plate, integrating the advantages of Resinnoid Bond and Metal Bond, shows excellent cut-ability and improves the work environment by only using water.
※ You can check the contents by scrolling left / right.
| Manufacturing Standard |
Spec | 6BL, 9BL, 12BL, 18BL |
|---|---|---|
| Abrasive | Diamond, CBN | |
| Concentration | 100 | |
| Application | ▷Ceramic : Alumina, Silicon, Carbide, Ferrite ▷Zirconia, Boron Carbide ▷Glass Products (Sapphire), Quartz ▷Aluminum, Copper, Brass, etc. |
|
| * Plate size and thickness can be customized.(Size: 12”, 15, 24”, 36”, 48”, thickness: 1/4”, 1/2”, 1”) | ||
Plate Type & Purpose
| Plate Type | Purpose | Contenty | Abrasives |
|---|---|---|---|
| Iron Plate | Course Lapping | It is an iron polymer suitable for lapping of ceramics, Tungsten Carbide and etc. | Diamond Powder 9μ, 15μ, 30μ |
| Cu Plate | Middle Lapping | It is a copper polymer suitable for lapping of ceramics, ferrite nickel silver, sapphire and crystal. | Diamond Powder 3μ, 6μ, 9μ |
| Tin Plate | Fine Polishing | It is a tin polymer suitable for lapping of alumina, zirconia with electromagnetic functions. | Diamond Powder 1/4μ, 1/2μ, 1μ, 2μ, 3μ |
| Ceramic Plate | For Composite | Ceramic- ferrite complex plate. Base plate suitable for hard materials such as cemented carbide, single crystal ferrite | Diamond Powder 1μ, 2μ, 3μ |
| Cast Iron Plate | Course Lapping | Suitable for all types of workpiece rough machining. | GC, C, WA, A |
| Diamond Pellet Plate | Course & Middle Lapping | Excellent cut-ability for difficult materials such as iron, nonferrous, ceramics and carbide. | None |
| PVA & FBB Plate | Course & Middle Lapping | Suitable for processing soft material of iron and nonferrous products. | None |
Plate Size : 8", 10", 12", 15", 18", 24", 36", 48", 52", 64"
t : 1/4", 1/2", 1"
t : 1/4", 1/2", 1"
