Cold Saw Blade (Throw Away Type)

IBCHE Cold Saw Blade
IBCHE Cermet Tipped Circular Saw Blade
[Cermet Tipped Circular Saw Blade]
IC-1M (Cold Saw Blade)
  • Cermet tips are brazed on the shank body and tips are grinded to a particular shape, making it appropriate for cutting various kinds of metal bar
  • Cutting Material : Carbon Steels, Alloy Steels, Tool Steels
  • Cutting Parameters : Vc = 70 ~ 120m/min, Fz = 0.05~0.07mm
  • Features : Special tooth geometry ensures longer tool life and improved surface quality
IBCHE Coated Tungsten Carbide Tipped Circular Saw Blade
IC-2S (Cold Saw Blade)
  • Tungsten Carbide tips are brazed on the shank body and tips are grinded and coated
  • Cutting Material : Stainless Steels
  • Cutting Parameters : Vc = 50~70m/min, Fz = 0.04~0.06mm
  • Features : Special coating on the edge ensures less friction and better heat resistant on the cutting edge material resulting in higher yield rate
  • IBCHE Cold Saw Blade
  • IBCHE Cold Saw Blade
  • IBCHE Cold Saw Blade
  • IBCHE Cold Saw Blade
Cold Saw Blade Specification
Outer Diameter(D) SIZE PIN HOLE Remarks
Plate Thickness(T) Number of Blades Hole Diameter
250 1.70 72 32 4-Φ11-PCD 63 NISHIJIMA(NHC 050NA) / TSUNE(TK5C50GL) / KASTO(WA 70) / EVERISING(P-65B) / BEHRINGER EISELE(HCS 70) / NORITAKE(NCS 2/50) / AMADA(CM 65AN) / FONG HO
1.70 80 32 2-Φ11-PCD 80
285 1.70 60 32 4-Φ11-PCD 63
2-Φ11-PCD 80
NISHIJIMA(NHC 070NA) / TSUNE(TK5C 70GL) / KASTO(WA 70) / EVERISNG(P-65B) / BEHRINGER EISELE(HCS 7 90) / NORITAKE(NCS 2/65) / KENTAI(KTC 65) / TEC(DC 65) / FONG HO / CUTTRA-70
1.70 72 32
1.70 80 32
1.70 90 32
1.70 100 32 4-Φ11-PCD 63
1.70 120 32 4-Φ11-PCD 63
1.75 60 40 2-Φ11-PCD 80
1.75 72 40
1.75 80 40
1.75 90 40
305 1.70 60 32 4-Φ11-PCD 63 TSUNE(TK5C 72GL)
1.70 72 32
315 1.90 60 32 4-Φ11-PCD 63 DELTA(IC-1M-SS31560)
1.90 72 32 4-Φ11-PCD 63 CUTTRA-100
2.00 60 32
2.00 72 32
2.00 80 32
2.00 90 32
2.00 100 32
360 2.25 60 40 4-Φ12-PCD 90
4-Φ16-PCD 80
NISHIJIMA(NHC 100NA) / TSUNE(TK5C 100GL) / KASTO(SPEED C14) / EVERISING(P-100B) / BEHRINGER EISELE(HCS 90/130) / NORITAKE(NCS 2/100) / AMADA(CMB 100CNC) / MEGA(CS 100) / ANDERSON(NCB 100) / FONG HO / CUTTRA-150
2.25 60 50
2.25 72 40 4-Φ12-PCD 90, 4-Φ16-PCD 80
2.25 72 50 4-Φ11-PCD 90, 4-Φ16-PCD 80
1.70 80 40 4-Φ11-PCD 90,
4-Φ13.5-PCD 80
2.25 80 40 4-Φ11-PCD 90,
4-Φ13.5-PCD 80
2.25 80 50 4-Φ16-PCD 80
2.25 100 50
1.75 100 50 4-Φ11-PCD 90,
4-Φ16-PCD 80
2.25 100 40 4-Φ11-PCD 90,
4-Φ16-PCD 80
2.25 100 32 4-Φ11-PCD 63
2.25 120 32
2.25 120 40 4-Φ12-PCD 90,
4-Φ16-PCD 80
2.25 120 50 4-Φ11-PCD 90,
4-Φ16-PCD 80
2.25 130 32 4-Φ11-PCD 63
380 2.25 60 50 4-Φ11-PCD 90,
4-Φ16-PCD 80
NISHIJIMA(NHC 100NA) / TSUNE(TK5C 100GL) / KASTO(SPEED C14) / EVERISING(P-100B) / BEHRINGER EISELE(HCS 90/130) / NORITAKE(NCS 2/100) AMADA(CMB 100CNC) / MEGA(CS 100) / ANDERSON(NCB 100) / FONG HO / CUTTRA-150
2.25 60 40 4-Φ11-PCD 90
2.25 72 50 4-Φ16-PCD 80
2.25 80 50
2.25 130 50 4-Φ16-PCD 80
395 2.25 80 50 4-Φ16-PCD 80 TSUNE(TK100GL)
425 2.25 60 50 4-Φ21-PCD 90,
4-Φ16-PCD 80
TSUNE(TK130GL)
2.25 80 50
2.30 72 50
460 2.25 40 50 4-Φ11-PCD 90,
4-Φ16-PCD 80
NISHIJIMA(NHC 150NA) / EVERISING(P-150B) / BEHRINGER EISELE(HCS 150) / NORITAKE(NCS 2/150) / AMADA(CMB 150CNC) / MEGA(CS 150) / KENTAI / FRANHO / FONG HO /CUTTRA-200
2.25 60 50
2.25 72 50
2.25 80 50
※ Other sizes could be produced upon customer's special request.
※ The specifications above may be changed without prior notice.

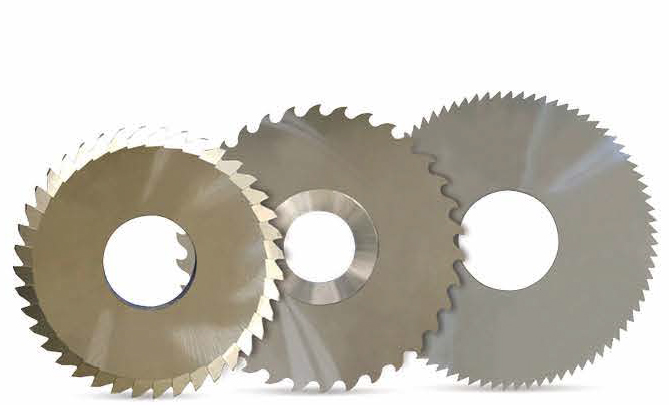

Carbide SLITTING SAW (Cold Saw Blade)
  • IBCHE Metal Slitting Saw

    METAL SLITTING SAW

    Applied in cutting and grooving

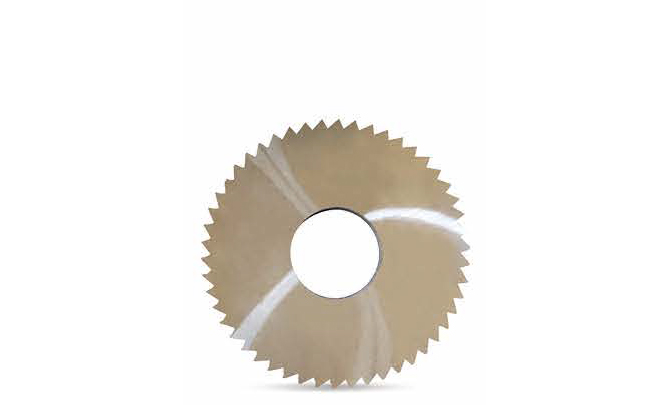

  • IBCHE Metal Slitting Saw For Aluminum

    METAL SLITTING SAW FOR ALUMINUM

    Largely used in cutting and grooving of aluminum & aluminum alloy

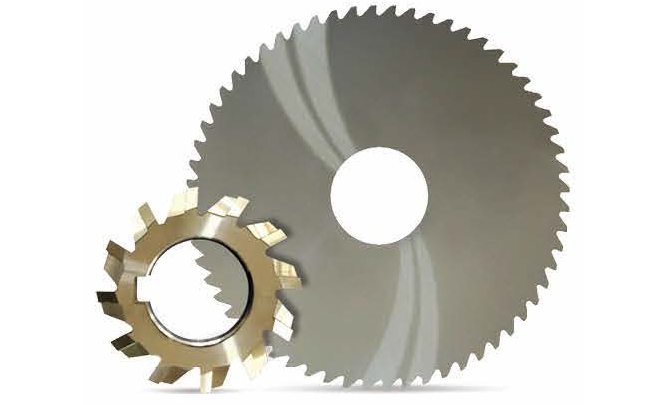

  • IBCHE Carbide Side Milling Cutter

    CARBIDE SIDE MILLING CUTTER

    Usually used for grooving as there is a cutting edge on both outer and side parts of a tool
  • IBCHE Angle Milling Cutter

    ANGLE MILLING CUTTER

    Milling cutter used for grinding V-groove and steep slope surface
Specification (Cold Saw Blade)
Category Outer Diameter(D) Remarks
60 70 75 80 85 90 100 110 120 125 130 150
Plate Thickness(T) 0.3t ~ 0.4t ~ 0.5t 1t ~ 5t 1.5t ~ 5t
Number of Blades
No. of teeth
60, 72Z 60 ~ 120Z
Hole Diameter 25.4
※ Sizes other than standard specification listed above require consultation.
IBCHE Cold Saw Blade
Specification (Cold Saw Blade)
Category Outer Diameter(D) Remarks
250 280 285 315 360 380 420 460 530
Plate Thickness(T) 1.7 1.7 1.7 1.75 1.7 1.7 1.7 1.9 2.25 2.25 2.25 2.25 2.7 2.25 2.25 2.5
Number of Blades
No. of teeth
54 60 72 72 60 80 90 60, 80 60 80 100 60, 80 60, 80 40 60 60, 80
Hole Diameter 32 32 32 40 32 32 32 32 40, 50 40, 50 40, 50 50 50 50 50 50
※ Sizes other than standard specification listed above require consultation.
