Circular Saw Machine
- Manufacturing spin gear in TAPER type to minimize backlash at the output shaft
- Reducing backlash to maximize the life span
- Full automatic NC system and touch screen method
- Diagnosis of default part and instruction of corrective measures
- Conveying the head by the ball screw
- Precise cutting by material transfer of servo motor
- Suitable for mass production and precision cutting
Specification (Circular Saw Machine)
※ You can check the contents by scrolling left / right.
| Model No. | CUTTRA -70 | CUTTRA -100 | CUTTRA -150 | CUTTRA -200 | |
|---|---|---|---|---|---|
| Cutting Ability | Material Change | Ø10 ~ Ø70 | Ø25 ~ Ø100 | Ø40 ~ Ø150 | Ø30 ~ Ø200 |
| Saw blade | Type | Throw-away Cermet & Coated Tungsten Carbide Tipped Saw | |||
| Size | 285×32×2.0 | 315×32×2.25 | 360×2.5 or 2.6 | 460×2.7 | |
| No. of Teeth | 60, 72, 80, 100, 120 | 60, 72, 80, 100, 120 | 60, 80, 100 | 40, 60 | |
| Machine Weight(kg) | 2,700 | 3,800 | 2,300 | 4,800 | |
※ Product performance and design changeable to meet the customer's requirements
Photo (Circular Saw Machine)
-
Touch screen -

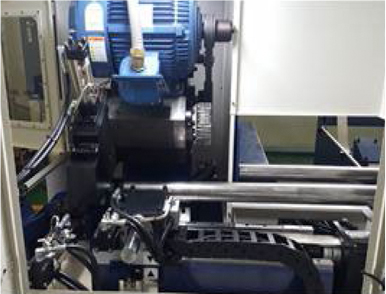

High-efficiency reducer -

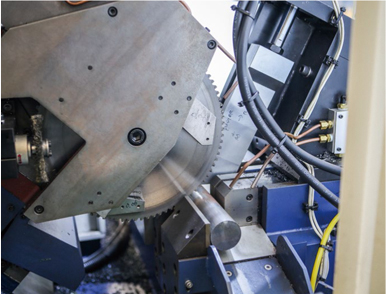

Saw head servo system

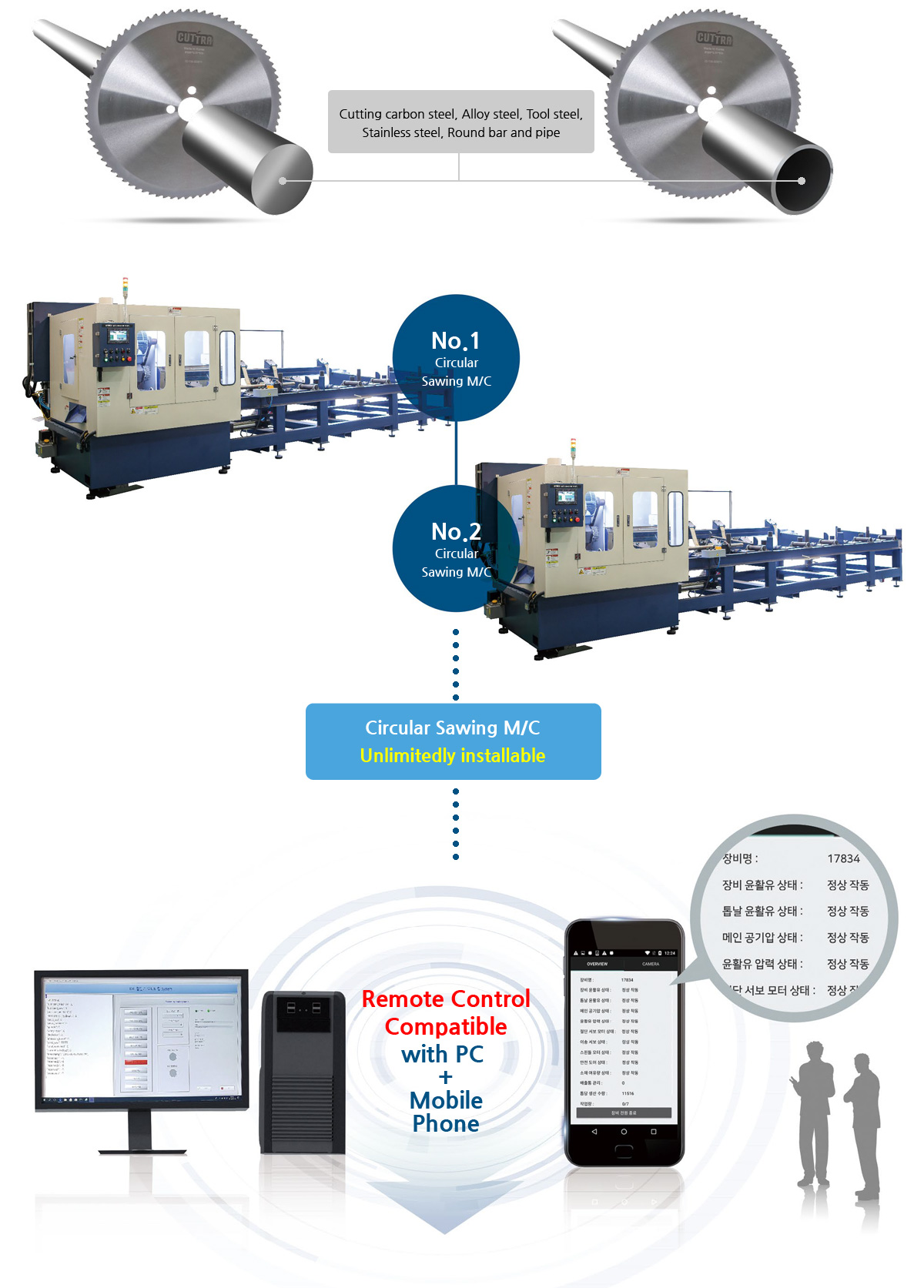

Equipment suitable for implementation of ICT, IoT convergence Smart Factory
- · Equipment operation status can be checked with mobile device
- · Equipment can be remotely stopped in case of emergency
